What are Level Clustering Algorithms?
Level clustering algorithms turn a chart's scattered price extremes into a short, ranked list of support and resistance levels. The problem they solve is that price rarely respects an exact tick twice: swing highs and lows land near each other, not on top of each other. A clustering pass groups nearby prices within a tolerance and treats each group as one level or zone, which is how an indicator draws three meaningful lines instead of eighty noisy ones.
Most implementations follow the same pipeline: collect candidate points (swing pivots, candle extremes, sometimes volume peaks), merge candidates that sit within a distance threshold (a fixed percentage, tick count, or ATR multiple), then score each grouping by touch count, recency, timeframe, or traded volume and keep the strongest few. Fancier variants replace the merge step with k-means clustering on price, or with kernel density estimation, where peaks of the price density become the levels. The output is only as objective as its parameters: lookback and tolerance choices mean two algorithms can draw honestly different maps of the same chart.
The algorithm menu is worth knowing because each choice biases the map. Simple agglomerative merging is transparent but order-dependent at the margins. K-means requires choosing the number of levels in advance and will manufacture exactly that many, whether the chart supports them or not. Density estimation turns the choice into a bandwidth: narrow bandwidths fragment the map into many thin levels, wide ones smear distinct shelves together. Candidate choice matters just as much; some maps admit formula-based prices such as floor pivots or period opens alongside detected swings, and scoring commonly multiplies touch count by a recency decay and a timeframe weight.

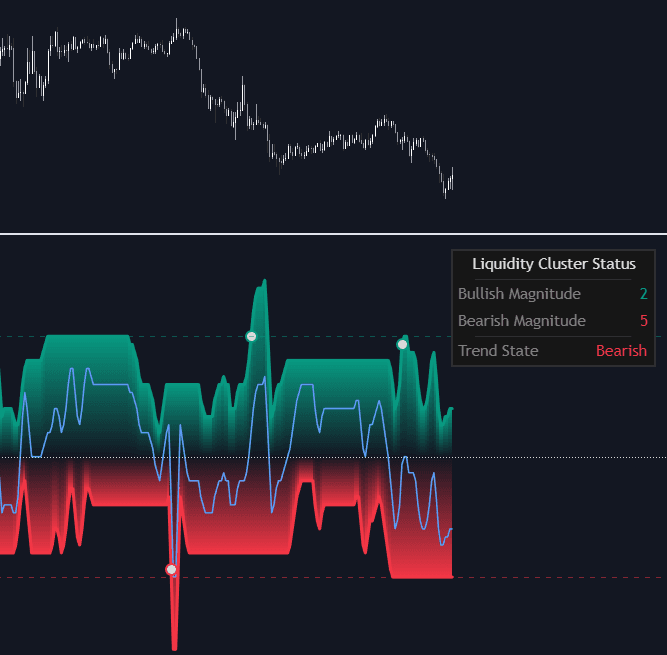

LuxAlgo ships several implementations of the idea. Support Resistance Classification detects and classifies levels by strength; Pivot Point Profile histograms pivot prices across the lookback, which is density estimation in all but name; and Liquidity Clusters Magnitude applies the grouping logic to estimated liquidation prices, ranking zones by the size of what rests there. The shared honesty requirement is parameter disclosure: every map is conditional on its lookback, tolerance and scoring weights, and levels can appear or vanish simply because old pivots rolled out of the window.
How a level clustering algorithm works
Implementations differ in detail, but nearly all run the same stages.
- 1Collect candidates: detect swing highs and lows across a lookback window using pivot detection, fractals, or zigzag filtering, and pool their prices.
- 2Group by proximity: merge candidates that fall within the tolerance distance into a single group. The tolerance is the most sensitive setting; too tight fragments levels, too loose smears them together.
- 3Score each grouping: more touches, more recent touches, higher-timeframe origin, and heavier volume at the price all raise a group's rank.
- 4Render the survivors: the top-ranked groupings print as lines, or as zones whose width reflects the spread of prices inside the group.
- 5Stress-test the parameters: nudge the lookback and tolerance and watch which levels survive; robust levels persist across settings, fragile ones are artifacts of one configuration.
How traders use it
- To automate the S/R map: clustered levels are rule-based and reproducible, removing the subjectivity of hand-picking which highs and lows count.
- To trade zones instead of lines: a group's internal spread gives a natural zone width, which absorbs the near-misses that make tick-perfect levels unusable.
- To filter signals: breakout and reversal setups can be gated to fire only at high-scoring clusters, cutting trades taken at weak or stale levels.
- To weight timeframes: clustering each timeframe separately and boosting higher-timeframe clusters yields one map in which the levels most participants care about rank highest.
- To feed downstream logic: the ranked map becomes the stable input for level interaction rules and freshness tracking, so bounce and break playbooks reason about a few maintained levels rather than raw pivot noise.
Level Clustering Algorithms vs related concepts
S/R Zone: The zone is the output; the clustering algorithm is the machinery. A hand-drawn zone encodes judgment about one chart, while a clustered zone encodes pivot statistics over a defined lookback with stated rules.
Volume Profile: A volume profile clusters traded volume by price and surfaces high-volume nodes; level clustering typically groups price extremes regardless of volume. Both locate prices of interest, from different raw material.
K-means Regime Clustering: Same algorithm family, different target. K-means over price values yields horizontal levels; k-means over volatility and trend features classifies market regimes through time.
More Level Clustering Algorithms implementations
Concept family
Support/Resistance & Levels
38 concepts mapped · 38 in the Library
Level Clustering Algorithms FAQ
What data do level clustering algorithms group?
Most group the prices of detected swing pivots over a lookback window; some add candle closes, wick extremes, or volume-profile peaks as candidates. The essential parameters are the lookback (how much history contributes points) and the merge tolerance (how close two prices must be to count as the same level). Both materially change the drawn map.
Are algorithmic support and resistance levels better than hand-drawn levels?
They are more consistent, not necessarily more predictive. An algorithm applies the same rules to every chart and can be backtested, while a skilled hand can weigh context the rules miss. Neither approach makes a level hold; the honest use is treating either map as a set of decision points that still require price confirmation.
How many levels should a clustering algorithm display?
Fewer than you would think. Showing every grouping reproduces the clutter the algorithm exists to remove, so most implementations cap output to the handful of highest-scoring levels per side, or fade weaker clusters visually. If every candle sits near a level, the map has stopped saying anything useful.
How is k-means used to find support and resistance?
The pivot prices are treated as one-dimensional data and k-means partitions them into k groups, whose centroids become the levels. It is fast and deterministic enough with careful initialization, but k must be chosen in advance: ask for seven levels and you get seven, regardless of whether the chart contains three shelves or twelve. Density-based approaches that discover the count from the data avoid that specific distortion.
Should the merge tolerance be a fixed percentage or ATR-based?
Volatility-scaled tolerances travel better. A fixed 0.5 percent means very different things on a quiet FX pair and a volatile crypto pair, and even on one symbol as regimes change. Expressing the tolerance as a fraction of ATR lets the same setting produce sensible maps across symbols and regimes; tick-based tolerances remain common on futures where tick economics dominate.
Do clustered levels repaint?
Two honest caveats apply. Swing pivots confirm only after enough right-side bars print, so a new extreme joins the map with a delay, and a level can appear bars after the touch that created it. Separately, rolling lookbacks retire old pivots, so levels can vanish or shift without price doing anything at them. Good implementations disclose the confirmation delay and mark levels whose support has rolled out of the window.
