Min-max Scaling

What is Min-max Scaling?

Min-max scaling rescales a series to a fixed interval, usually 0 to 1 or 0 to 100, by subtracting the window minimum and dividing by the window range (maximum minus minimum). On charts it is almost always rolling: the extremes are taken over a trailing lookback, so each value states where the series sits inside its recent range. The Stochastic oscillator's %K is exactly this transform, min-max scaling the close against the highest high and lowest low of the lookback.

The transform predates charting software. Rescaling data to a unit interval is one of the oldest normalization steps in statistics, and machine-learning practice knows it as feature scaling. Technical analysis absorbed it early: the stochastic oscillator popularized by George Lane in the late 1950s is a min-max scale of the close, and Williams %R is the same measurement flipped upside down. The formula is one line, scaled = (value - window minimum) / (window maximum - window minimum), multiplied by 100 when a 0-100 display is wanted. The only real parameter is the window, which decides what counts as the range each value is judged against.

The appeal is comparability: once everything lives on the same bounded scale, oscillators with unlike units can share a panel, feed a composite score, or enter a model without one input dominating on magnitude alone. The cost is outlier sensitivity: a single extreme print stretches the range and compresses everything else toward the middle, which is why a Z-score or percentile rank is often preferred when the input has fat tails.

Two practical details matter in implementation. First, the degenerate window: when the lookback's maximum equals its minimum the denominator is zero, so indicators must clamp, hold the prior value, or skip the bar, and a nearly flat window makes the output twitchy, since tiny price moves traverse the whole scale. Second, the choice of transform should follow the distribution of the input: examining the series first, in the spirit of distribution-of-returns profiling, tells you whether the tails are thin enough for min-max to behave. For heavy-tailed inputs, rank-based scaling keeps resolution where the data lives, while min-max spends most of its scale on a few extreme prints.

How to recognize min-max scaling on a chart

Min-max scaling is a transform rather than a pattern, so identifying it means recognizing its signature in an indicator pane.

1. 1Look for hard bounds: a pane whose readings touch exactly 0 and 100 (or 0 and 1) rather than approaching them asymptotically is min-max scaled; unbounded oscillators drift to arbitrary extremes instead.
2. 2Watch new extremes: every new lookback high maps to exactly the top bound and every new low to the bottom, so a trending market pins the line flat at an extreme. That pinning is the transform's fingerprint.
3. 3Find the lookback input in the settings: shortening it makes the line reach the bounds constantly, while lengthening it makes extremes rare and the line smoother.
4. 4Compare the scaled pane with the raw series: turning points align bar for bar, but the scaled version discards amplitude, so a huge move and a modest one can both read as 100.
5. 5Check flat-range behavior: if the pane goes erratic or blank when price compresses into a very tight range, you are seeing the zero-range denominator being handled.

How traders use it

• To normalize unlike indicators onto one 0-100 panel or dashboard, so momentum, volume, and volatility readings can be compared, averaged, or scored side by side.
• As a position-in-range read on price itself: values near 1 mean the market is trading at the top of its N-bar range and values near 0 at the bottom, which is the raw material of stochastic-style logic.
• As feature scaling before model fitting, where bounded, comparable inputs keep distance-based and gradient-based methods from being dominated by whichever raw series has the largest units, and keep the higher-order terms of a polynomial regression numerically well behaved.
• To bound an unbounded oscillator: normalizing MACD or rate-of-change output onto a fixed scale gives it stochastic-style thresholds, which is what normalized-MACD constructions do, making alert levels transferable across symbols and timeframes.

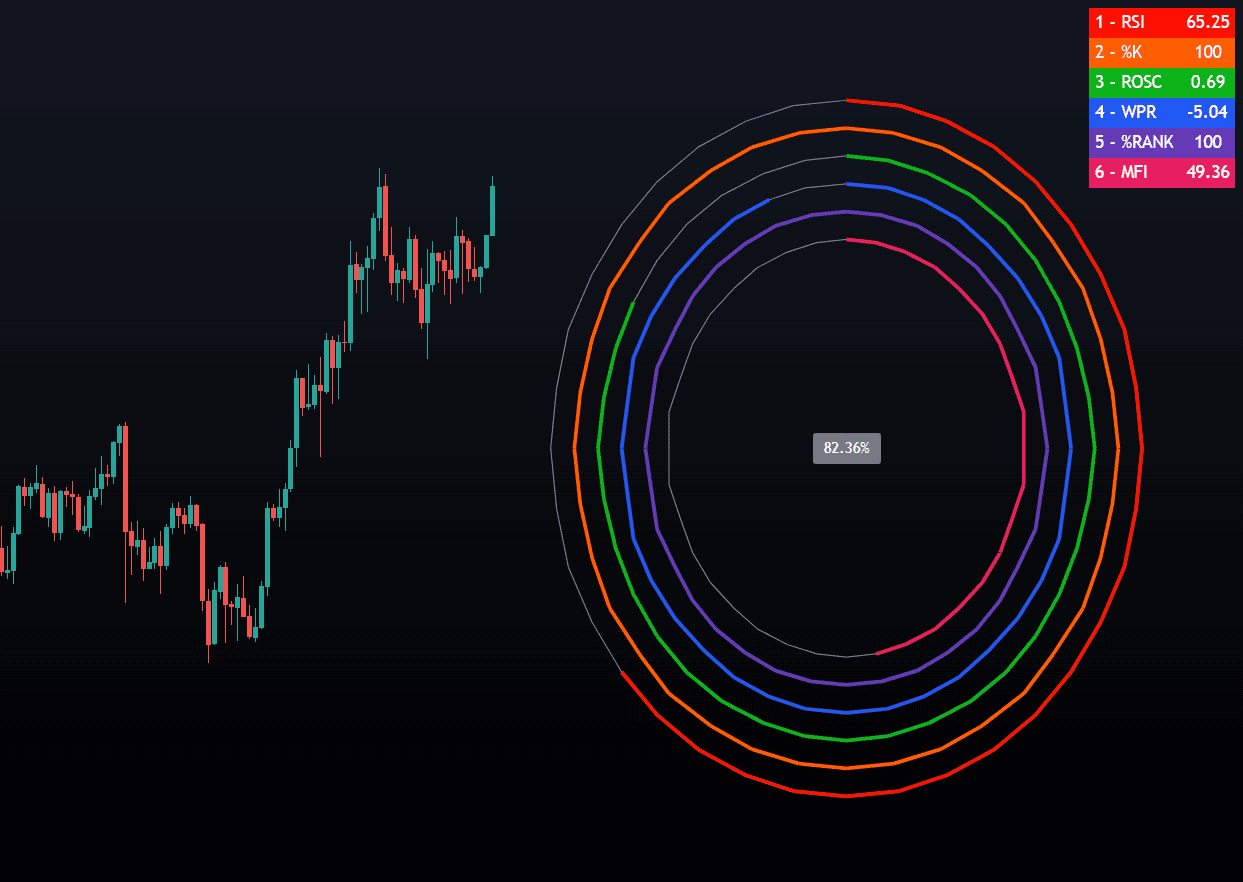

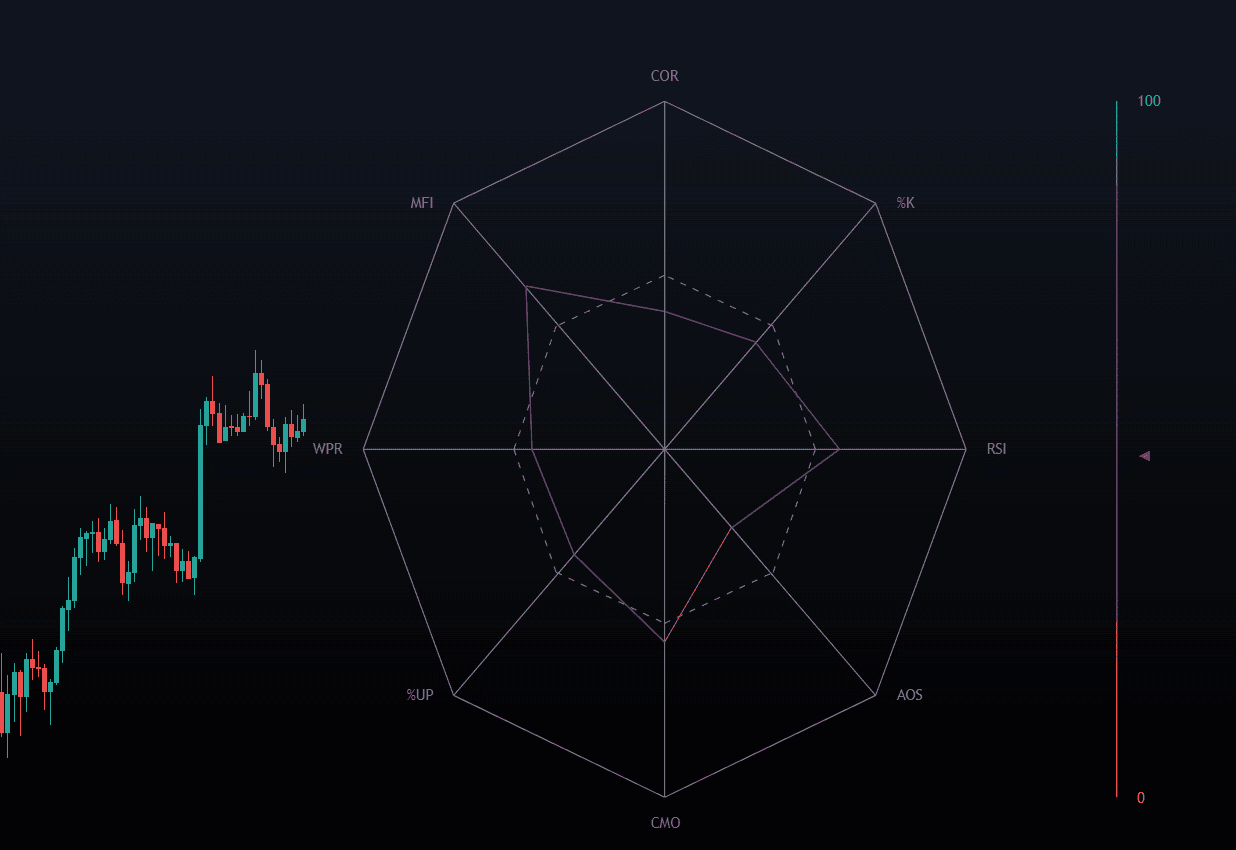

• As the aggregation step in composite dashboards: sentiment spider charts and circular barplots min-max scale each component oscillator first, so a single average or shape can summarize many unlike readings without unit mismatch.
